Raytech 1000ml Magic Gel | MAGICGEL1000

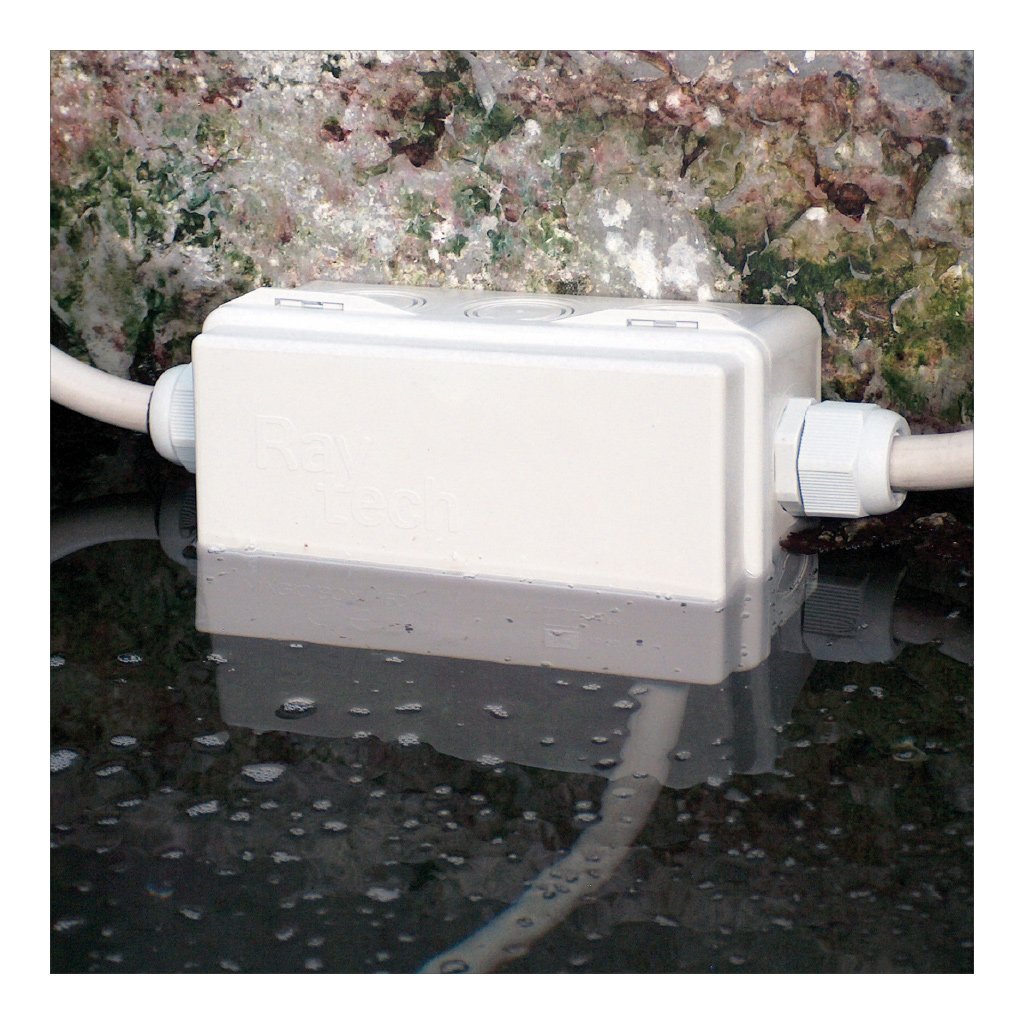

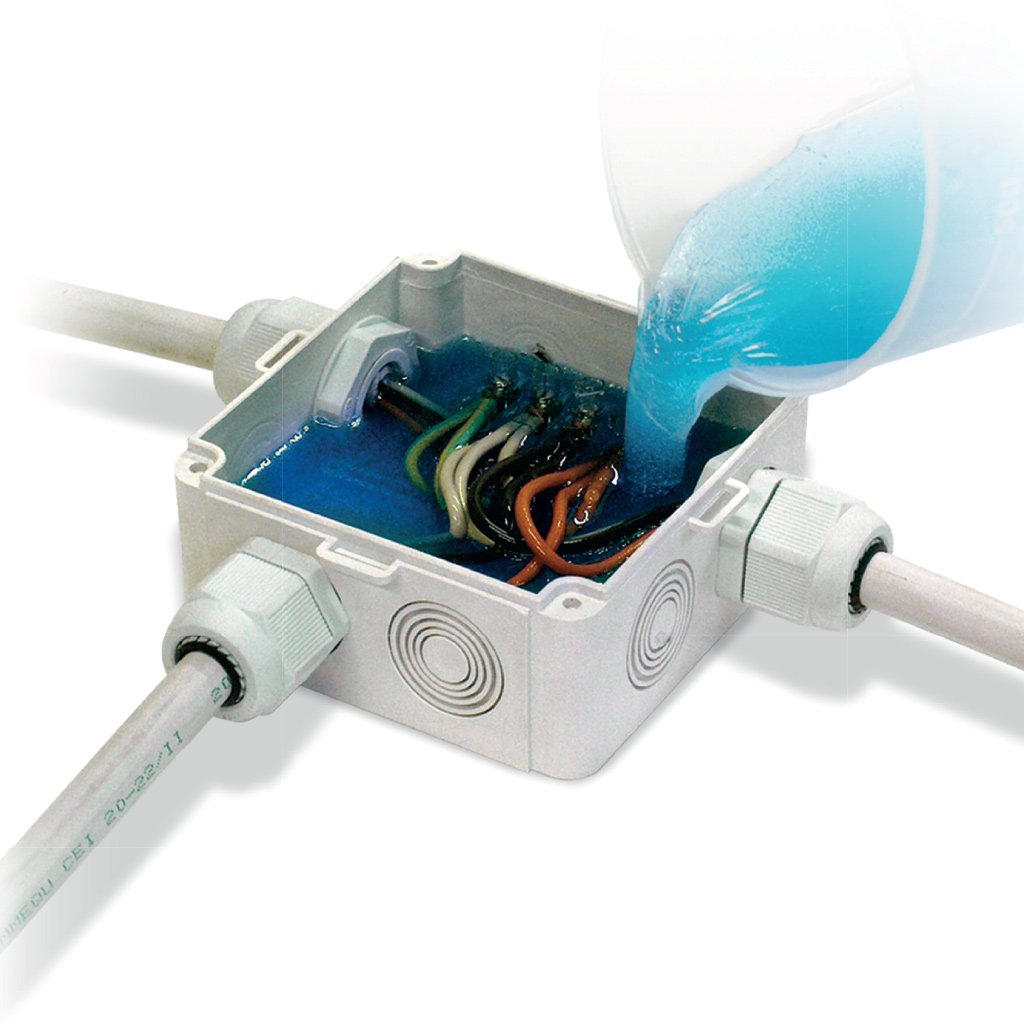

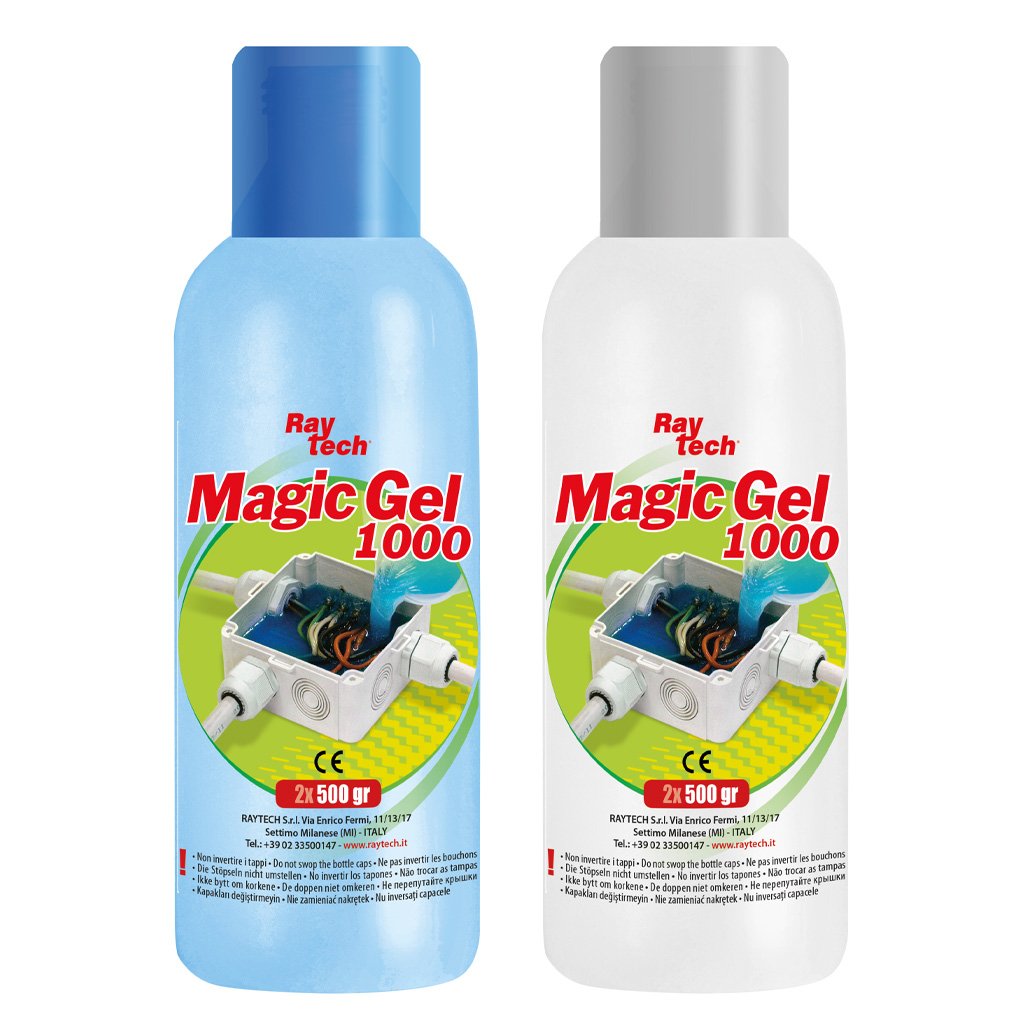

The Raytech Magic Gel 1000ml is a two-component insulating and sealing gel designed to provide durable electrical protection in demanding environments. Ideal for cable joints, junction boxes, and enclosures, the gel delivers reliable IP68 sealing against water, moisture, dust, and environmental contaminants when used in suitable housings. Supplied in a convenient twin-bottle format, the low-viscosity gel mixes easily and cross-links rapidly, encapsulating connections in under 10 minutes without generating harmful heat. Once cured, the gel remains flexible and re-enterable, allowing future maintenance or modifications without replacement. With excellent dielectric properties and a wide operating temperature range, Magic Gel is a dependable alternative to traditional resins for both indoor and outdoor installations.
Features
- Two-component insulating and sealing gel
- Rapid cross-linking — cures in approximately 10 minutes
- IP68 protection when used in suitable enclosures
- Re-enterable and reusable after installation
- Low viscosity for complete encapsulation of connections
- Non-toxic and safe with no shelf life
- Excellent dielectric and thermal performance
- Suitable for indoor, outdoor, underground, and submerged installations
- Resistant to moisture, corrosion, UV, and environmental stress
- Ideal replacement for traditional resin systems
Specifications
| Product Type | Two-component insulating gel |
| Volume | 1000ml per unit |
| Pack Size | Box of 12 |
| Protection Rating | IP68 (in suitable enclosure) |
| Dielectric Strength | >20–23 kV/mm |
| Volume Resistivity | >2 × 10¹⁵ Ω·cm |
| Cross Linking Time | Approx. 10–15 minutes at 23–25°C |
| Operating Temperature | -60°C to +200°C |
| Overload Temperature (Short Periods) | Up to +250°C |
| Gel Classification | UL 94-HB |
| Colour | Blue / Translucent |
| Re-enterable | Yes |
| Shelf Life | Unlimited (does not solidify when stored) |
